AquAid Instant Boil and Chill Tap
AquAid Instant Boil and Chill Tap
Instant Boiling, Chilled and Ambient Water from One Elegant Tap
The AquAid Instant Boil and Chill Tap is a sleek, space-saving solution designed to deliver instant boiling, chilled and ambient filtered water directly from a single tap. Ideal for offices, staff kitchens, healthcare environments and modern workplaces, it removes the need for kettles and countertop appliances while providing safe, efficient and stylish hydration.
With a compact under-sink boiler, optional chilling unit and intuitive touch-control tap with built-in safety features, this system offers a complete hot and cold water solution without cluttering work surfaces.
Product Information ForAquAid Instant Boil and Chill Tap
The AquAid Instant Boil and Chill Tap is designed for environments where convenience, hygiene and aesthetics are equally important. The discreet under-sink hot water boiler keeps the system hidden from view, while the elegant tap delivers filtered water at the touch of a button.
The system dispenses boiling water up to 98°C and ambient filtered water as standard, with an optional chilling unit available to provide cold drinking water — creating a complete all-in-one solution from a single tap.
A 3.7-litre hot water tank delivers rapid draw-off for multiple drinks, while the integrated safety controls help prevent accidental dispensing of boiling water.
Best suited for installation in:
- Office kitchens and tea points
- Healthcare and clinical environments
- Education staff rooms
- Hospitality back-of-house areas
- Modern workplaces seeking a minimalist solution
- Instant boiling and ambient filtered water at the touch of a button
- Optional chilling unit for a complete hot, cold and ambient solution
- Compact under-sink boiler, keeping worktops clear
- 3.7-litre hot tank with rapid draw-off
- Up to 14 litres per hour hot water output above 90°C

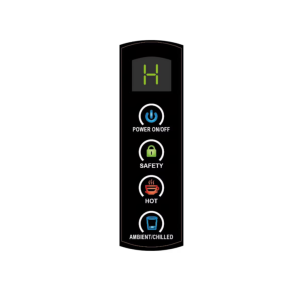

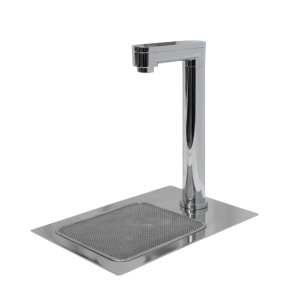

- Elegant touch-control tap with built-in hot water safety feature
- 240mm dispense gap, ideal for bottle filling
- Optional drainage system or installation over sink
- Filtered mains-fed system, no bottled water required
Water & Performance
- Water supply: Mains-fed
- Hot tank capacity: 3.7 litres
- Typical draw-off: 3.7 litres above 90°C
- Hourly hot water output: Up to 14 litres per hour above 90°C
- Maximum temperature: 98°C
Electrical Consumption
- Heating unit: 2kW
- Chilling unit (optional): 120W
Installation
Tap hole required: 35mm worktop hole
Power lead length:
- Boiling unit: 1 metre
- Chilling unit: 2 metres
Build & Finish
Outer material: Galvanised steel plate with powder coating
Dispensing
Dispense gap: 240mm (ideal for bottle filling)
Dimensions
Heating Unit:
- Width: 170mm
- Depth: 320mm
- Height: 290mm
Chilling Unit (optional):
- Width: 410mm
- Depth: 210mm
- Height: 330mm
At Aquaid Tyne and Wear, we provide professional installation and ongoing support to ensure your Instant Boil and Chill Tap operates safely and efficiently.
- Installation arranged at a time that suits your workplace
- Installed by trained AquAid engineers
- Optional chilling unit installed and configured as required
- Ongoing servicing and maintenance available
Our team ensures correct installation, electrical compliance and safe operation from day one.
Every AquAid system installed helps support global clean water initiatives.
A portion of revenue from AquAid products is donated to The Africa Trust and Christian Aid, helping provide safe, sustainable drinking water to communities across Africa.
Your choice delivers convenience in your workplace — and clean water where it’s needed most.
Not sure which is right for your workplace?
Contact The Aquaid Tyne Wear Tees team for help making a decision about what is best water system for your business.
